Compiling chkint

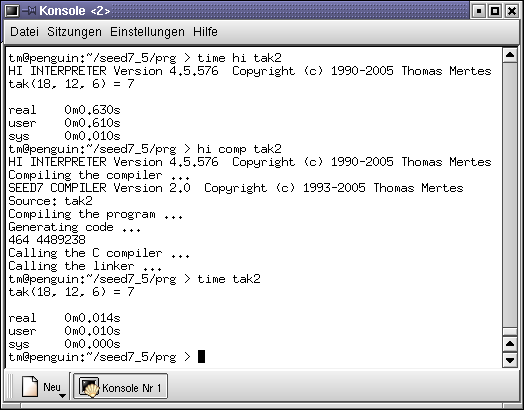

Speed improvement with compiled program

Comp is the Seed7 compiler.

Comp is written in Seed7 and compiles Seed7 programs to C programs. It uses the analyze phase of the interpreter to convert a program from Seed7 to call-code. Call-code consists of values and function calls and is just handled in memory. Then it uses the call-code to generate a corresponding C program. This C program is compiled and linked with the Seed7 runtime library aterwards.

 hi comp [ options ] source

Possible options are

• -O and -O2 tell the C compiler to optimize.

The Seed7 reflection provides access to the internal data structures of the interpreter. Specially the call-code of a program can be accessed with the reflection. This makes it suitable for compiling seed7. There are several types on which the reflection is based:

program

Describes a program and is the entry point to the reflection for the compiler.

reference

Reference to an object (plain old data types count also as object here).

ref_list

List of references objects.

type

Describes a type (the types of the compiled program have their own type namespace).

The Seed7 compiler does several optimisations (without using the '-O' option):

1. For certain constant values some function calls are replaced by corresponding calls of special case functions:
   • The string comparisons = and <> (primitive actions 'str_eq' and 'str_ne') are simplified when one or both parameters are constant strings.

   • The string indexing like stri[num] (primitive action 'str_idx') is simplified when the string or the index are constant.

   • The array indexing like anArray[num] (primitive action 'arr_idx') is simplified when the array or the index are constant.

   • Searches and splits with string constant of length 1 are replaced by equivalent functions which use a character instead:

     Function call	replaced by	C function	replacement C function
     pos(stri, "a")	pos(stri, 'a')	'strPos'	'strChPos'
     rpos(stri, "a")	rpos(stri, 'a')	'strRpos'	'strRChPos'
     pos(stri, "a", start)	pos(stri, 'a', start)	'strIpos'	'strChIpos'
     split(stri, "a")	split(stri, 'a')	'strSplit'	'strChSplit'

   • Initialisations of string variables are optimized when an empty string or a string with length 1 is used:

     Seed7 variable declaration	C declaration	C initialisation	replacement C initialisation
     var string: myStri is "";	stritype o_123/*myStri*/;	o_123/*stri*/=strCreate("");	o_123/*stri*/=strEmpty(); /* "" */
     var string: myStri is "a";	stritype o_123/*myStri*/;	o_123/*stri*/=strCreate("a");	o_123/*stri*/=chrStr('a'); /* "a" */

   • BigInteger operations are optimized when a cheaper function can be used:

     Original expression	Optimized expression
     num * 0_	0
     num * 1_	num
     num * 2_	num << 1
     num * 4_	num << 2
     num * 8_	num << 3
     0_ * num	0
     1_ * num	num
     2_ * num	num << 1
     4_ * num	num << 2
     8_ * num	num << 3
     num ** (-1)	raise NUMERIC_ERROR
     num ** 0_	1
     num ** 1_	num
     num ** 2_	num * num
     1_ ** num	raise NUMERIC_ERROR for num<0 or 1_
     2_ ** num	1 << num
     4_ ** num	1 << 2 * num
     8_ ** num	1 << 3 * num
     num mdiv -1	-num
     num mdiv 0	raise NUMERIC_ERROR
     num mdiv 1	num
     num mdiv 2	num >> 1
     num mdiv 4	num >> 2

2. A temporary expression which would be freed after the return from a function can be used by special case functions. That way it is not necessary to free the temporary value afterwards:
   • When the first parameter of 'strConcat' is a temporary value 'strConcatTemp' is used instead. The 'strConcatTemp' function resizes the temorary and returns it after the second parameter has been concatenated.

   • When the parameter of 'strLow' is a temporary value 'strLowTemp' is used instead. The 'strLowTemp' function returns the parameter as result of the conversion to lower case.

   • When the parameter of 'strUp' is a temporary value 'strUpTemp' is used instead. The 'strUpTemp' function returns the parameter as result of the conversion to upper case.
